Gear hub components

Speedhub torque can be anchored to the frame using a PM axle plate and PM bone for all frames with a Postmount standard brake mount. The PM Bone is always required in conjunction with a PM axleplate.

Rohloff Support Bolt for Axle Plate OEM2

For mounting on OEM2 M5 fender and rack threaded hole

2 x axle nut (cap nut) with washer suitable for the Speedhub TS (screw axle).

Jubilee clips for attaching the quick release torque arm to the chainstay (CC versions).

Rohloff Torque Arm Clamp TS

Rohloff Torque Arm Quick Release Block

Axle Plate Torque Screws for Rohloff Speedhub 500/14

All Rohloff Speedhub 500/14 versions that do not have the additional designation OEM or OEM2 are equipped with the long standard torque support for torque support on the frame. This must first be bolted to the axle plate (CC or TS).

All Rohloff Speedhub 500/14 versions that do not have the additional designation OEM or OEM2 are equipped with the long standard torque support for torque support on the frame. This must first be bolted to the axle plate (CC or TS).

With the CC versions of the Speedhub torque arm, the clevis for the quick release must also be fitted.

Rohloff mounting bolts and washers for clevis

The Monkey Bone by Rohloff replaces the combination of a SPEEDBONE adapter and a standard IS-PM adapter and thus makes it easier to use the Rohloff OEM2 axle plate in combination with PostMount disc brakes. Thanks to a special mount, the OEM2 axle plate can be inserted directly to transfer the torque through the Monkey Bone adapter.

Axle plate for mounting the classic torque support at the chainstay. For frames without OEM dropouts or disc mount. There are two different axle types: CC (Cross Country): hollow axle for use with a quick release lever (quick release axle). , TS (Threaded Spindle): threaded axle with axle nuts M10x1.

Rohloff Axle Plate CC OEM

Rohloff Axle Plate TS OEM

Rohloff Axle Plate TS OEM Long Threaded

CC (Cross Country) stands for hollow axles used with quick release skewers. With OEM2 mounting, the brake mounting eyelets of the frame are also used to prevent the hub axle from rotating (torque support). The OEM2 axle plate replaces the long torque arm of the standard version. This results in a clean and uncluttered look. The prerequisite is a brake mount according to the international standard (IS 2000) taking into account the installation conditions. By exchanging the axle plate, any version of the Rohloff Speedhub 500/14 can be converted for OEM2 installation.

TS (Touring Screw [Axle]) stands for screw axles with M10x1 axle nuts. With OEM2 mounting, the IS brake mounting eyelets of the frame are also used to prevent the hub axle from rotating (torque support). The OEM2 axle plate replaces the long torque arm of the standard version. This results in a clean and uncluttered look.The prerequisite is a brake mount according to the international standard (IS 2000) taking into account the installation conditions. By exchanging the axle plate, any version of the Rohloff Speedhub 500/14 can be converted for OEM2 installation.

TS (Touring Screw [Axle]) stands for screw axles with M10x1 axle nuts. The long version has a longer axle journal for particularly thick dropouts. It also offers the option of mounting bicycle trailers or rear stands. With OEM2 mounting, the IS brake mounting eyelets of the frame are also used to prevent the hub axle from rotating (torque support). The OEM2 axle plate replaces the long torque arm of the standard version. This results in a clean and uncluttered look.The prerequisite is a brake mount according to the international standard (IS 2000) taking into account the installation conditions. By exchanging the axle plate, any version of the Rohloff Speedhub 500/14 can be converted for OEM2 installation.

Rohloff Speedhub can be used on frames with IS2000 standard brake disc mounts. With the OEM2 axle plate the torque can directly be supported by the frame. The long torque arm will no longer be necessary. If a disc brake is mounted the Rohloff Speedbone is needed in addition to the CC OEM2 axle plate.

Frames with disk brake mounts of IS2000 international standard can replace the use of the long torque arm of the Rohloff Speedhub 500/14 with an OEM2 axle plate and a support bolt. For use in conjunction with a disc brake, the Speedbone adapter also has to be mounted.

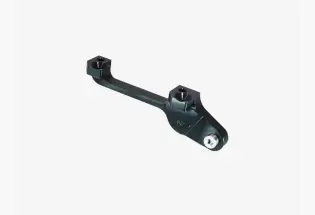

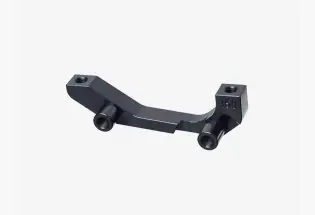

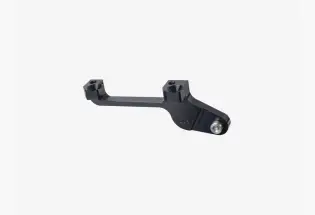

The PM Bone allows mounting of a Rohloff Speedhub on frames (135mm, 142mm, 170mm, 177mm) with a direct post mount brake mount (for 160mm or 180mm discs). In order to derive the hogging moment of the hub over the PM Bone into the frame, a PM axle plate must be used. The PM Bone is mounted between the frame and brake caliper and thus acts like a + 20mm adapter, which requires the use of each 20mm larger disc.

Axle-plate for Cross Country (CC (Cross Country) stands for hollow axles used with quick release skewers.) and postmount Disc Brakes.

Speedhub torque can be anchored to the frame using a PM axle plate and PM bone for all frames with a Postmount standard brake mount. The PM Bone is always required in conjunction with a PM axleplate.
